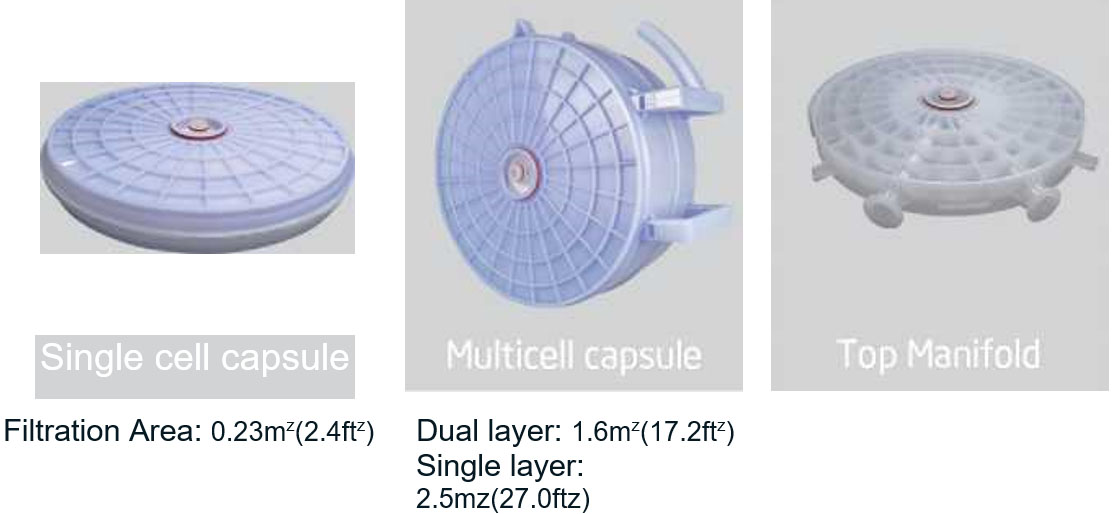

Bio-8 capsule filters are designed for Bio-products industry which mainly used in cell culture clarification or downstream impurity removal. It includes three models with different processing capabilities: small, large and integrated models. The complete system is comprised of a holder, two manifolds and the desired number of capsules.
Products
BIO-8 Capsule Filters
No.
Depends on configuration
Add to order
Features
-
- Disposable design makes it easier to install and dismantle
- Filtration volume can be flexibly adjusted through number of modules
- High contaminant holding capacity
- High filtration efficiency
- Translucent shell allows for easy fluid level observation
Applications
-
- Cell culture clarification
- Cell lysates filtration
- Host cell protein or hybrid protein aggregates filtration
- Protect downstream process
Construction Materials
- Media. Cellulose, filter-aids and resins
- Core/Cage/End Cap. Polypropylene / Polycarbonate
- Seal Material. Silicone
Bio-safety
- Endotoxin. Comply with USP, endotoxin
- Biocompatibility. Comply with USPUSP
Performance
- Max. Operating Temperature 40 °C
- Max. Operating DP 2.4 bar (35 psid)
- Autoclaving 125C-30min-1Cycle

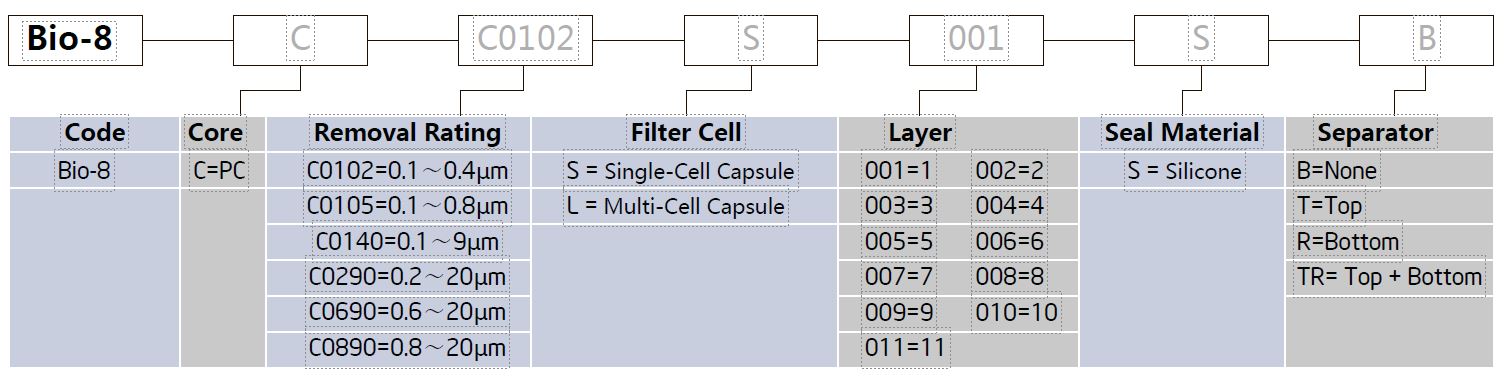

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
Bio-8 capsule filters are designed for Bio-products industry which mainly used in cell culture clarification or downstream impurity removal. It includes three models with different processing capabilities: small, large and integrated models. The complete system is comprised of a holder, two manifolds and the desired number of capsules.
