C15 capsule filters are made of polytetrafluoroethylene which have excellent resistance to organic and inorganic chemical corrosion properties along with natural hydrophobicity. It can be widely used in sterile ventilation processes such as biotechnology, pharmaceuticals, laboratories etc. It’s easy to use and operate, the lightweight design (only 20g) makes the structure very stable and reliable and will not appear hose bending to adversely affect ventilation.
Products
C15 Capsule Filter
No.
Depends on configuration
Add to order
Features
-
- PTFE components provide broad chemical compatibility
- Natural hydrophobicity, strong resistance property to chemical corrosions
- High flow rate and low extractables
- Lightweight structure, easy to install and dismantle
- 100% Integrity Test
Applications
-
- Sterile ventilation of culture containers and CO2 incubators
- Sterile ventilation of fermenters and storage tanks
- Autoclave steam sterilization air exchange
- Removal of gas particles
Construction Materials
- Housing PP
- Media Hydrophobic PTFE

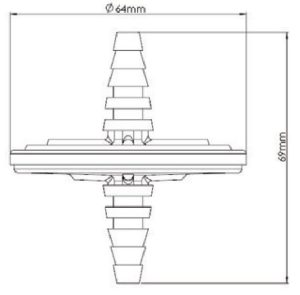

Dimension
- Outer Diameter 64 mm
- Length 69 mm
- Inlet/Outlet 1/4"-1/2"HB
Performance
- Max. Operating Pressure 3 Bar @ 20°C
- Autoclaving 125°C-30min-60cycles
- Filtration Area 20cm2

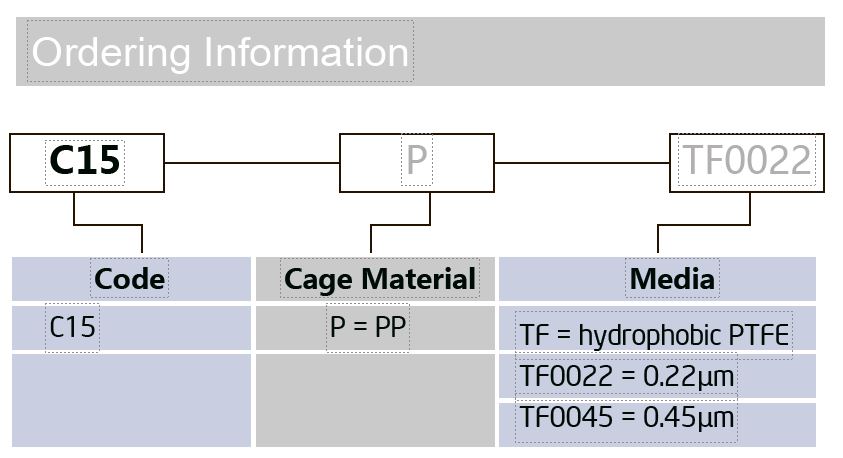

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
