C17 capsule filters adopt trapezoidal inlet and outlet hose barb and equip with exhaust and liquid port in the structure. Its inner filter membranes can be different according to specific biological filtration process, PTFE, PES, PVDF, PP and other materials are all available. The product shows high filtration efficiency when using, easy to install and convenient to operate. It can be widely used in biological pharmaceutical such as culture medium, buffers, organic solvents, other liquid filtration etc.
Products
C17 Capsule Filters
No.
Depends on configuration
Add to order
Features
-
- Broad chemical compatibility
- Hot-melt welding technology help to improve pressure resistance
- High flow rate and low extractables
- Easy to install and dismantle
- Multiple filter membranes are on available
- 100% Integrity Test
Applications
-
- Culture medium sterile filtration
- Buffer filtration
- Virus suspension filtration
- Filtration of aqueous or saline solutions
Construction Materials
- Housing PP
- Media PP, PTFE, PES, PVDF

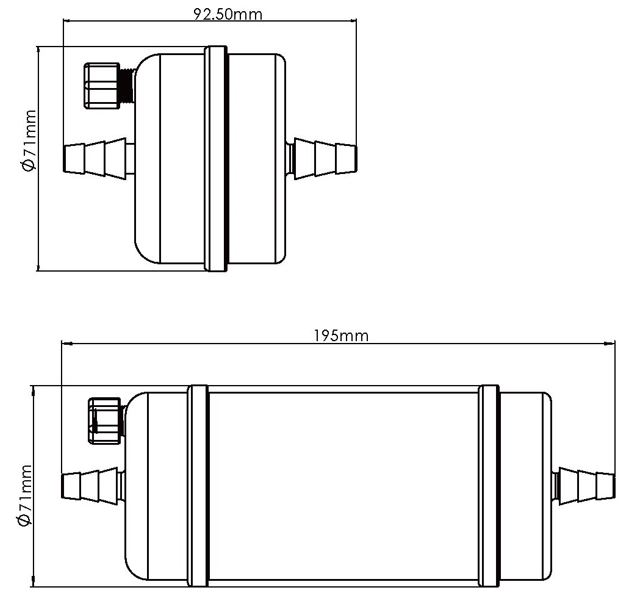

Dimension
- Outer Diameter 71 mm
- Length 92,5 mm, 195 mm
- Inlet/Outlet 1/4"-3/8"HB
Performance
- Max. Operating Temperature 80°C
- Max. Operating Pressure 6.0 Bar @ 20°C
- Filtration Area 570cm2, 2950cm2

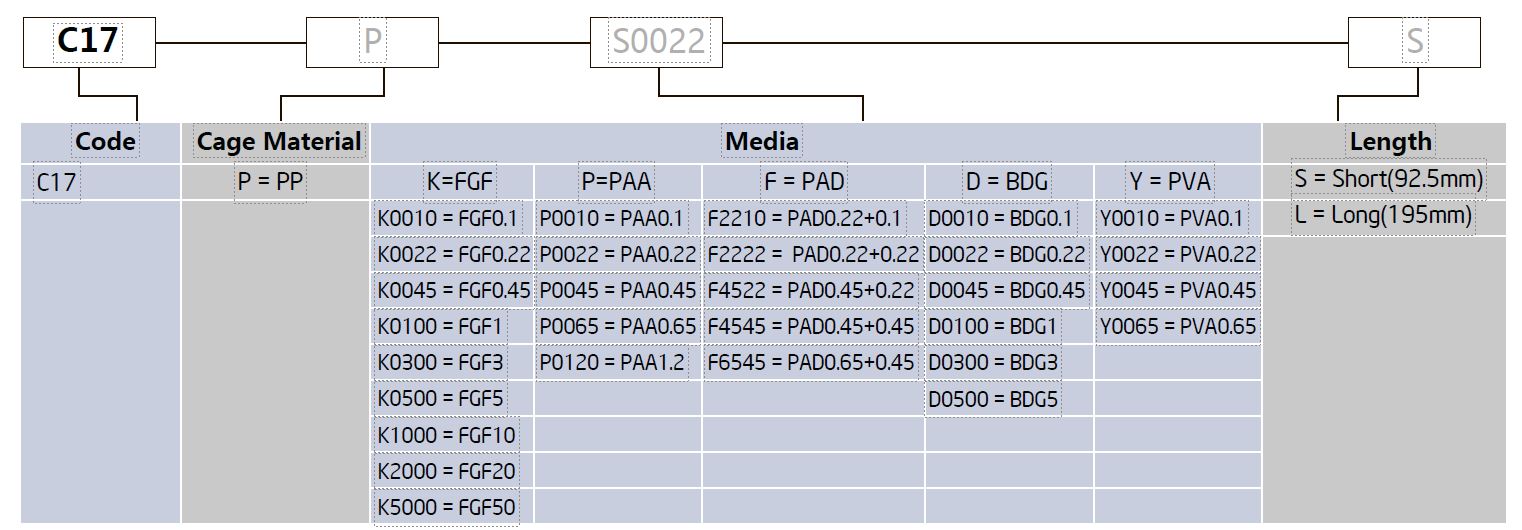

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
