L12 series filter cartridges are all-polypropylene filter cartridges made of submicron fine fiber filter media which provide smaller pore size. It is fabricated without using any binders, adhesives, plasticizers, and surfactants. FGE filters can be repeatedly hot water sanitized. All the materials used for this filter meet FDA requirements for food contact and pass European Commission Directives (EU10/2011).
Products
L12 Series PP Pleated Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Nominal rated structure, particle removal rating from 0.1 to 50 microns
- Non fiber shedding
- 100% polypropylene components provide broad chemical compatibility, suitable for use in various liquid filtration
- Various end cap configurations to fit into the most standard housings
Applications
- Food & Beverage
- Plating Chemicals
- RO Pre-Filtration
- Fine Chemicals
- Process Water
Dimension
- Outer Diameter 69 mm
- Length 5”, 10”, 20”, 30”, 40”
Construction Materials
| Media | PP |
| Support | PP |
| Hardware | PP,SS core & adapter insert available |
| Sealing | Silicone, EPDM, NBR, FKM, E-FKM |

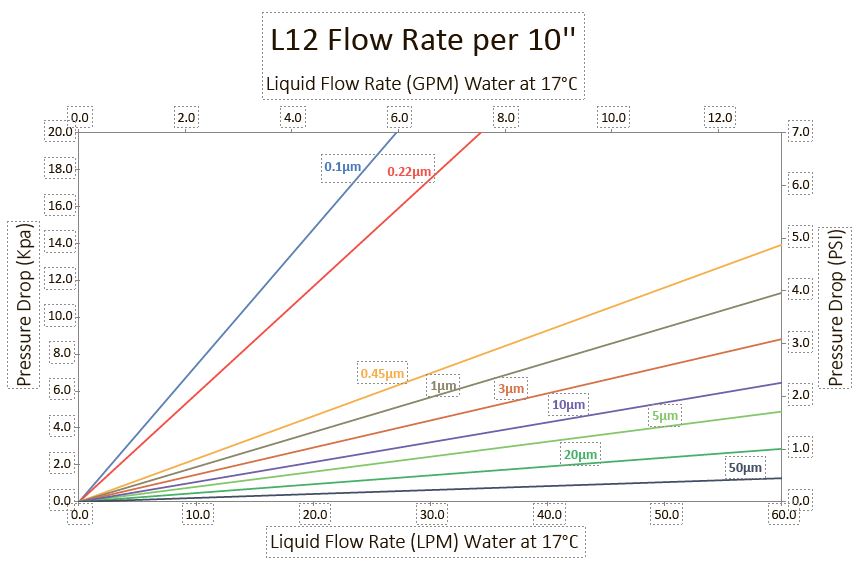

Performance
- Max. Operating Temperature - 80 °C
- Max. Operating DP - 4bar @ 20℃, 2.4bar @ 80℃
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Materials of filter media and hardware meet the specifications for biological safety per USP Class VI-121℃ for plastics Passed European Commission Directives (EU10/2011)
- Halal Certified

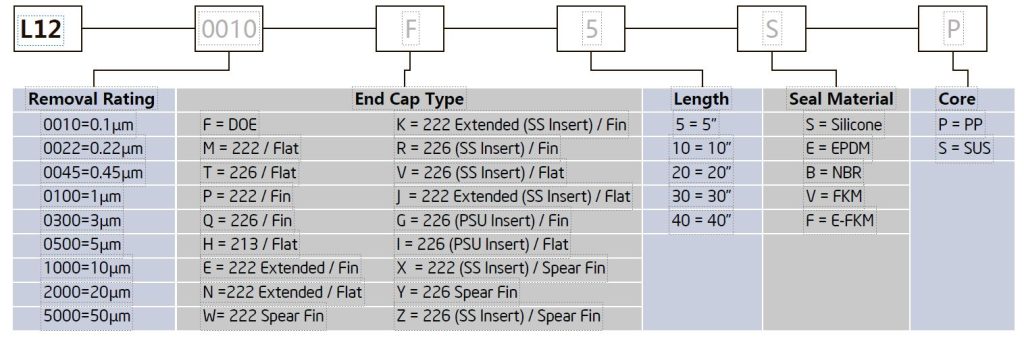

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
