L13 Series Filter Cartridges are absolute rated, pleated depth-type filters, constructed of 100% polypropylene mate-rial. These filters are available in absolute particle retention ratings from 0.1 to 50 micron and various end cap configurations to fit into the most standard housings. All components of the FGF series filter cartridges are FDA approved. The filter media and its support structure are thermally welded to the end caps, making integral filter cartridges of minimum extractables in a wide range of fluids and applications. All the filter cartridges are manufactured in a clean room environment.
Products
L13 Series PP Pleated Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Absolute rated structure, particle removal rating from 0.1 to 50 micron
- 100% polypropylene components provide broad chemical compatibility, suitable for use in a variety of fluids
- Consistent particle removal, no migration of filter media and non fiber shedding
Applications
- Food & Beverage
- Plating Chemicals
- RO Pre-Filtration
- Fine Chemicals
- Process Water
Dimension
- Outer Diameter 69 mm
- Length 5”, 10”, 20”, 30”, 40”
Construction Materials
| Media | PP |
| Support | PP |
| Cage/Core/End cap | PP |
| Sealing | Silicone, EPDM, NBR, FKM, E-FKM |

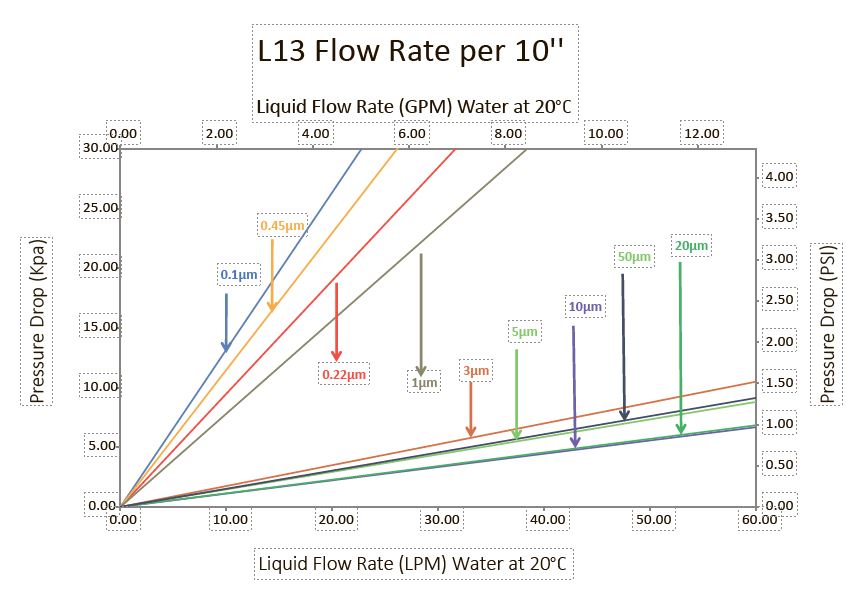

Performance
- Max. Operating Temperature - 80 °C
- Max. Operating DP - 4bar @ 20℃, 2.4bar @ 80℃
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Materials of filter media and hardware meet the specifications for biological safety per USP Class VI-121℃ for plastics Passed European Commission Directives (EU10/2011)
- Halal Certified

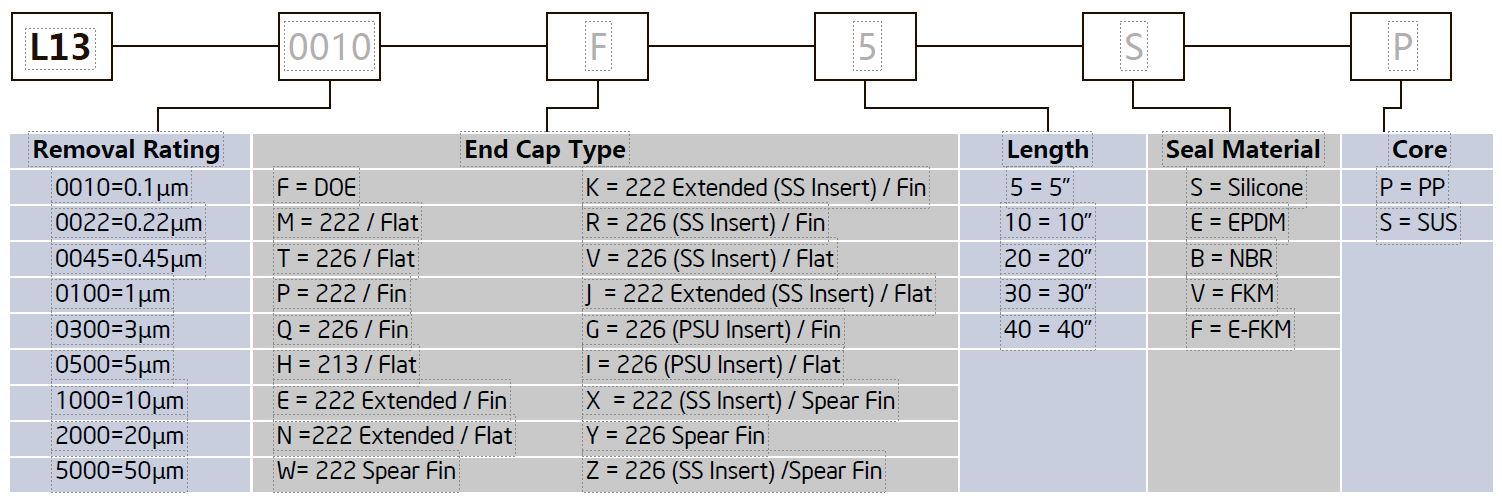

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
