L14 Series are all-polypropylene filter cartridges made with submicron fine fiber filter media which provide smaller pores. It is fabricated without using any binders, adhesives, plasticizers, and surfactants. PGA filters can be repeatedly hot water sanitized. The filter media and its support structure are thermally welded to the end caps, making integral filter cartridges of minimum extractables in a wide range of fluids and applications. All the filter cartridges are manufactured in a clean room environment.
Products
L14 Series PP Pleated Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Nominal rated structure, particle removal rating from 0.1 to 50 Micron
- Non fiber release
- 100% polypropylene components provide broad chemical compatibility, suitable for use in a variety of fluids
- Various end cap configurations to fit into most standard housings
Applications
- Pharmaceutical
- RO Pre-Filtration
- Fine Chemicals
- Process Water
Construction Materials
| Media | PP |
| Support | PP |
| Cage/Core/End cap | PP |
| Sealing | Silicone, EPDM, NBR, FKM |
Performance
- Max. Operating Temperature - 80 °C
- Max. Operating DP - 4bar @ 20℃, 2.4bar @ 80℃
- Filtration Area - 0.4 - 0.7m2 per 10” Filter
| Particle Removal Efficiency | ||
| Cartridge Designation | 90 % Efficiency | 95 % Efficiency |
| L140010 | 0,1 μm | —— |
| L140022 | 0,22 μm | —— |
| L140045 | 0,45 μm | —— |
| L140100 | 1 μm | —— |
| L140300 | 3 μm | 5 μm |
| L140500 | 5 μm | 10 μm |
| L141000 | 10 μm | 15 μm |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Materials of filter media and hardware meet the specifications for biological safety per USP Class VI-121℃ for plastics Passed European Commission Directives (EU10/2011)
- Halal Certified

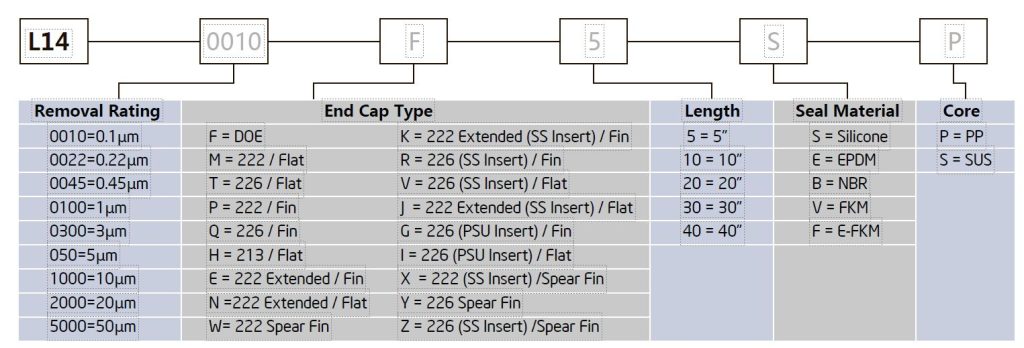

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
