L34 Series Filter Cartridges are made of polytetrafluoroethylene, and thus have excellent resistance to organic and inorganic chemical corrosive substances and have natural hydrophobicity of filtering materials. They are widely used in sterile filtration of strong solvents, strong corrosive liquids and strong oxidative liquids.
Products
L34 Series Sterilizing-Grade Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Inherently hydrophobic PTFE membranes
- All PP components and low extractables
- High-flow and low pressure drop
- Enhanced resistance to in-line and autoclave steam sterilization
- 100% Integrity Test
Applications
- Strong oxidative liquids filtration
- Prefiltration and terminal filtration of corrosive liquids
- Solvent materials filtration
Dimension
- Outer Diameter 69 mm
- Length 5”, 10”, 20”, 30”, 40”
Construction Materials
- Media. Hydrophobic PTFE
- Support. PP
- Core/Cage/End Cap. PP
- Seal Material. Silicone, EPDM, NBR, FKM, E-FKM

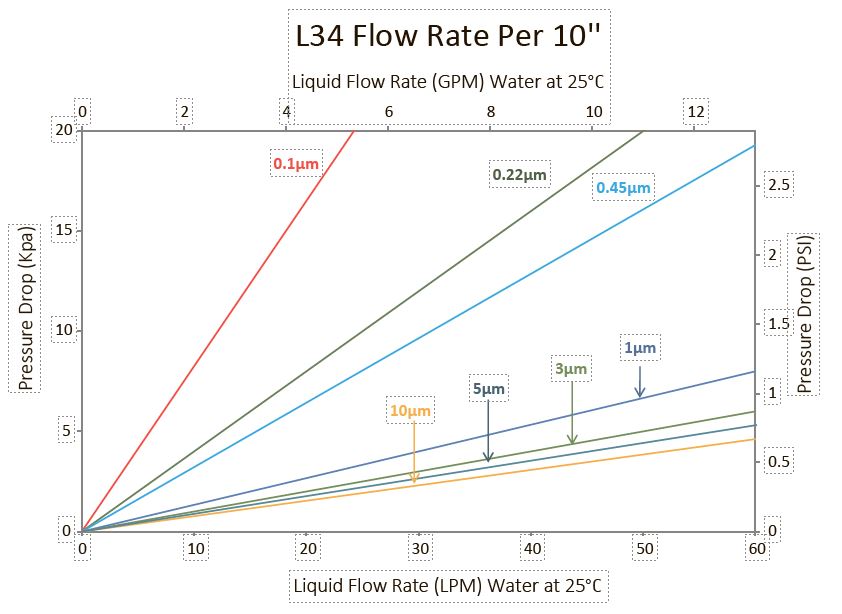

Performance
| Max Operating Temperature | 80 °C |
| Max Operating DP | 4.5 Bar @ 20℃ |
| 2.4 Bar @ 80℃ |
Quality
- Filter Cartridges are manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- 100% Integrity Tested
- Each individual element is tracked by serial number
Ordering information

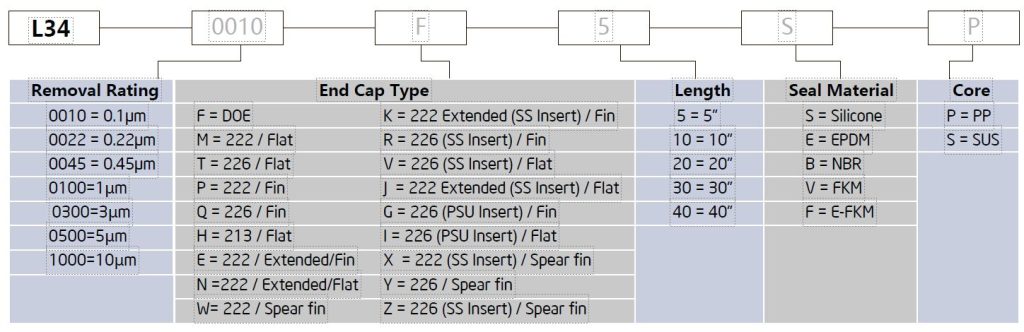

To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
