L36 series filter cartridges are made of polytetrafluoroethylene, and thus have excellent resistance to organic and inorganic chemical corrosive substances and have natural hydrophobicity of filtering materials. They are widely used in sterile filtration of strong solvent, strong corrosive liquid and strong oxidative liquid.
Products
L36 Series Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Inherently hydrophobic PTFE membranes
- Wide chemical compatibility, excellent resistance to corrosion, oxidation and organic solvents
- High-flow and low pressure drop
- Low extractables
Applications
- Strong oxidative liquids filtration
- Prefiltration and terminal filtration of corrosive liquids
- Solvent materials filtration
Dimension
- Outer Diameter 69 mm
- Length 5”, 10”, 20”, 30”, 40”
Construction Materials
- Media. Hydrophobic PTFE
- Support. PP
- Core/Cage/End Cap. PP
- Seal Material. Silicone, EPDM, FKM
Performance
| Max Operating Temperature | 80 °C |
| Max Operating DP | 4.0 Bar @ 20℃ |
| 2.4 Bar @ 80℃ |
Quality
- Manufactured in a clean room environment Manufactured according to ISO9001:2015 certified Quality Management System
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- 100% Integrity Tested
- Each element is tracked by serial number
Ordering information

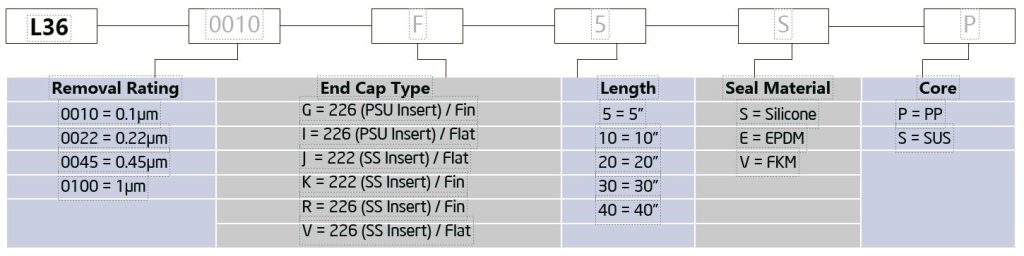

To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
L36 series filter cartridges are made of polytetrafluoroethylene, and thus have excellent resistance to organic and inorganic chemical corrosive substances and have natural hydrophobicity of filtering materials. They are widely used in sterile filtration of strong solvent, strong corrosive liquid and strong oxidative liquid.
