L46 Series filter cartridges are made of unique hydrophilic PVDF membrane characterized by ultra-low extractables and protein binding. They are specially developed for the removal of particles and microorganisms in application where maximizing protein recovery is critical.
Products
L46 Series Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Ultra-low protein binding & low extractables
- Superior flow rates
- All-thermal bonded construction, no adhesives
- Broad chemical compatibility
Applications
- Biological agents
- Antibiotics
- Disinfectant, munificent
- Culture medium
- Blood products
Dimension
- Outer Diameter 69 mm
- Length 5”, 10”, 20”, 30”, 40”
Construction Materials
- Media PVDF
- Support. PP
- Core/Cage. PP
- End Cap. PP, SS with insert
- Seal Material. Silicone, EPDM, NBR, FKM, E-FKM
Performance
| Max Operating Temperature | 80 °C |
| Max Operating DP | 4.0 Bar @ 25℃ |
| 2.4 Bar @ 80℃ | |
| SIP | 125℃/30min |
| Bacterial Retention |
Guarantee
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
- All pp components meet the specifications for biological safety per USP Class VI-121℃ for plastics
- Full traceability to each filter with unique serial number， 100% integrity tested
Ordering information

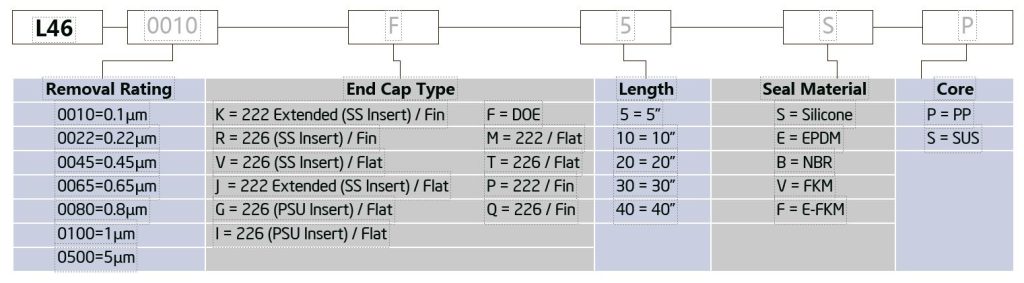

To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
