L59 Series Filter Cartridges are made of glass fiber. The pleated glass fiber filter cartridges are highly efficient, good for the pre-filtration of gas and vent, and can be effectively used in a variety of industrial applications. The cartridge offers a large surface area for high flow rates and high dirt holding capacity, also reduces labor costs with less changing of the filters.
Products
L59 Series – Glass Fiber Pleated Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Low pressure drops and high flow rates
- High filtration efficiency, up to 96%
- Excellent chemical compatibility
- High dirt holding capacity and long service life
Applications
- Food & Beverage
- Chemicals & Oil
- Pharmaceutical
- Process Water Treatment
- Pre-filtration of vent & gas
Construction Materials
- Media GF
- Support PP
- Core/Cage/End Cap PP
- Seal Material Silicone, EPDM, NBR, FKM, E-FKM
Dimension
- Outer Diameter 69 mm
- Length 5 ”, 10”, 20”, 30”, 40”

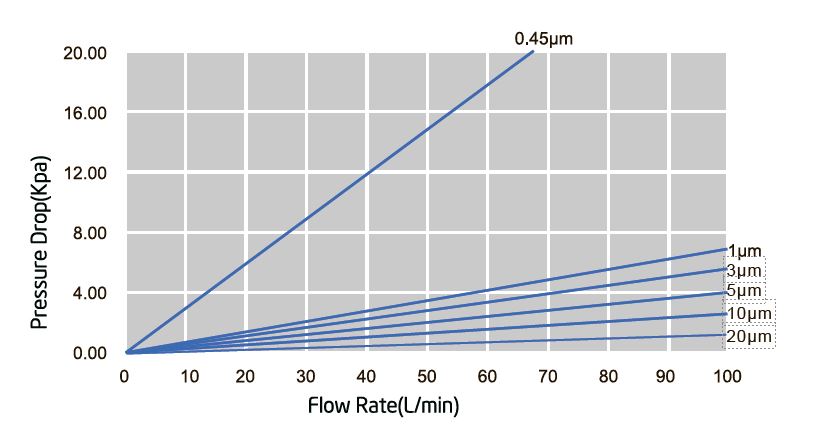

Performance
| Max. Operating Temperature | 80 °C |
| Max. Operating DP | 4.0 Bar @ 20℃ |
| 2.4 Bar @ 80℃ |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Materials used to produce filter media and hardware meet the specifications for biological safety per USP Class VI-121℃ for plastics
- Filter cartridges passed European Commission Directives (EU10/2011)
- Halal Certified
Ordering information

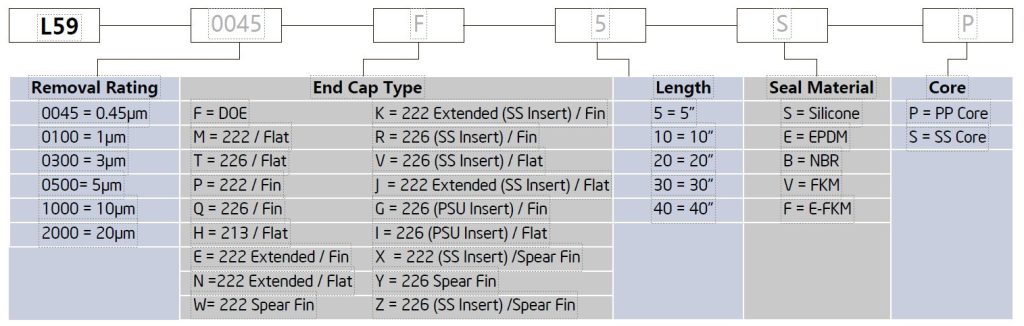

To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
