L63 Series Filter Cartridges use absolute rated N66 membrane that is inherently hydrophilic and has excellent chemical resistance. It is manufactured without the use of glues, adhesives or wetting agents, ensuring high purity in various application.
Products
L63 Series Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Hydrophilic Nylon 66 membrane
- No wetting agents, High flow and long service life
- Absolute rated filtration
- All thermal boned construction, no adhesives
- Excellent chemical resistance
- 100% integrity tested
Applications
- Pharmaceutical
- Organic solvents and aqueous co-solvent systems
- High purity water filtration
- Food and Beverage
Construction Materials
- Media N66
- Support PET
- Core/Cage PP
- End Cap PP
- Seal Material Silicone/EPDM
Dimension
- Out Diameter 69 mm
- Length 5”, 10”, 20”, 30”, 40”

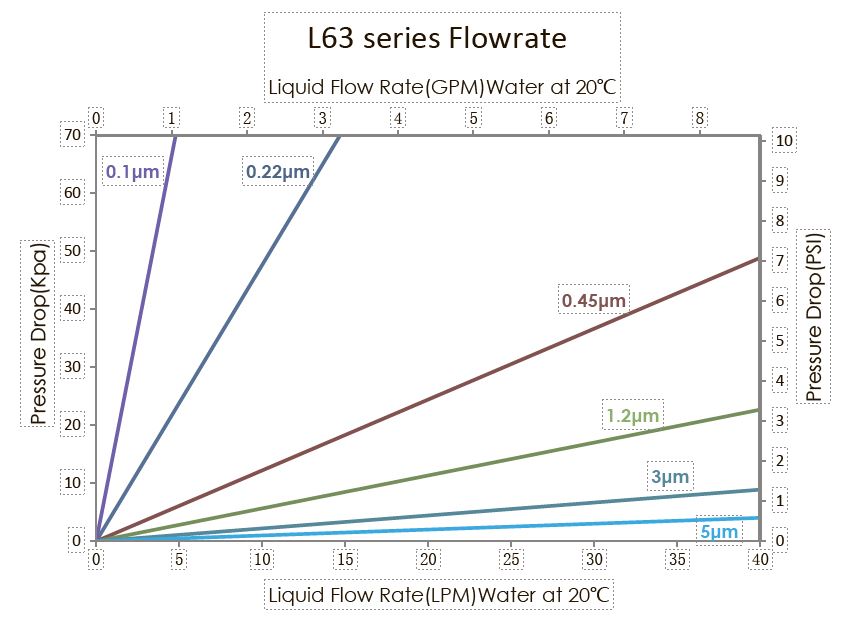

Performance
| Max Operating Temperature | 80 °C |
| Max Operating DP | 4.0 Bar @ 25℃ |
| 2.4 Bar @ 80℃ | |
| Steam Sterilization | 125℃, 30 minutes, 30 Cycles |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Management System
- All pp components meet the specifications for biological safety per USP Class VI-121℃ for plastics

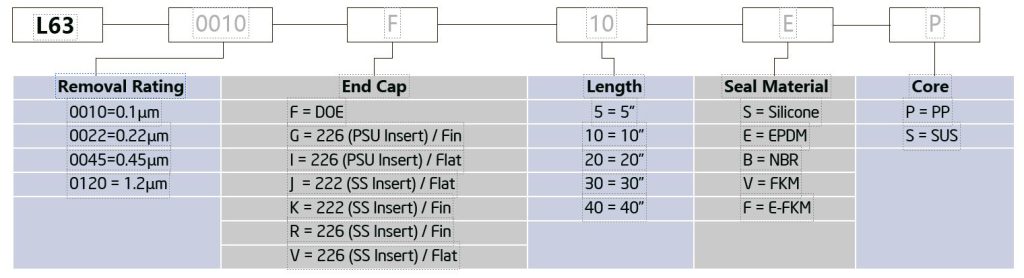

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
