L64 Series Filter Cartridges use absolute rated N66 membrane that is inherently hydrophilic and has excellent chemical resistance, it is manufactured without the use of glues, adhesives or wetting agents, ensuring high purity in various applications.
Products
L64 Series Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Hydrophilic Nylon 66 membrane, no wetting agents
- Double layer media, absolute rated filtration
- High flow and long service life
- Superior chemical resistance
- Enhanced resistance to in-line and autoclave steam sterilization
- 100% integrity tested
Applications
- Pharmaceutical
- Organic solvents and aqueous co-solvent systems
- High purity water filtration
Construction Materials
- Media N66
- Support PET
- Core/Cage PP
- End Cap PP
- Seal Material Silicone/EPDM
Dimension
- Out Diameter 69 mm
- Length 5 ”, 10”, 20”, 30”, 40”
Performance
| Max. Operating Temperature | 80 °C |
| Max. Operating DP | 4.0 Bar @ 25℃ |
| 2.4 Bar @ 80℃ | |
| Steam sterilization | 125℃, 30 minutes, 30 cycles |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified quality management system
- All pp components meet the specifications for biological safety per USP Class VI-121℃ for plastics
- The extractable level was not more than 25mg per 10 inch cartridge
- A cartridge aqueous extraction contains less than 0.25 EU / ml
- Full traceability to each filter with unique serial number
- 100% integrity tested
Ordering information

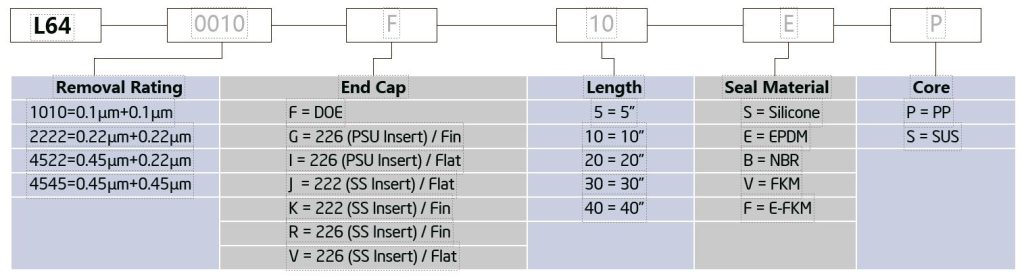

To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
