L77 Carbon Cellulose Pleated Filter Cartridges are made of high performance carbon impregnated cellulose media as well as FDA corresponding PP hardware and seal material. The media has features of narrow pore size distribution, big surface area, fast adsorption and desorption speed, good formability and other advantages. The main application of this filter cartridge is decolorizing filtration for pharmaceutical liquids and fine chemical products.
Products
L77 Carbon Cellulose Pleated Filter Cartridges
No.
Depends on configuration
Add to order
Applications
- Decolorizing filtration of organic solvent
- Decolorizing filtration of antibiotic, antivirus, hormone drugs
- Decolorizing filtration of Vitamins, amino acids, sugar, starch
- Decolorizing filtration of pesticide, fine chemical products
Construction Materials
- Media Carbon impregnated cellulose media
- Support PP
- Cage/Core/End cap PP
- Sealing Silicone, EPDM, FKM
Dimension
- Outer Diameter 69 mm
- Length 5”, 10”, 20”, 30”, 40”
Performance
| Micro rating | 5μm |
| pH | 1–13 |
| Max. Operating Temperature | ≤ 50 °C |
| Max. Operating Pressure | 65 °C |
| Max. Operating DP | 4 bar @ 20 ℃ |
| 1 bar @ 65 ℃ |

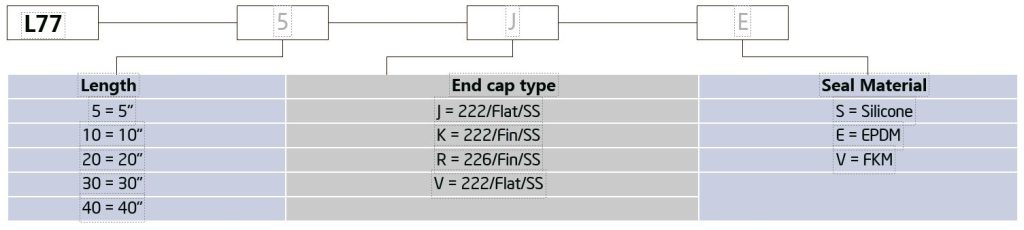

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
L77 Carbon Cellulose Pleated Filter Cartridges are made of high performance carbon impregnated cellulose media as well as FDA corresponding PP hardware and seal material. The media has features of narrow pore size distribution, big surface area, fast adsorption and desorption speed, good formability and other advantages. The main application of this filter cartridge is decolorizing filtration for pharmaceutical liquids and fine chemical products.
