L82 Series Melt Blown Cartridges are one of the standard Darlly Filter Cartridges. It is fused and intertwined with polypropylene resin without any chemical glues. The cartridge is glued at random to form 3D micro pore which will make the cartridge’s 3 layers with fibers on the surface and inside. With the fiber, density from high filtration rating, strong pollutants hold capacity, low pressure drop, gradual changing structure loose outside and close inside, it can remove contaminant effectively, such as suspended substance, particulate and rust, providing efficient filtration and long service life.
Products
L82 Series – Melt Blown Filter Cartridges
No.
Depends on configuration
Add to order
Features
| Series | Feature & Benefit |
| H | Coarse surface · Strong mechanical performance and high pressure resistant |
| Blank | Smooth Surface-No Fiber Shedding, Graded Density Pore Structure |
| DG | Deep Groove-Bigger Filtration Area , High Flow & Dirt Holding Capacity |
| MG | Mini groove-Tight Fiber Construction and High Filtration Efficiency |
Applications
- R.O.Pre-filtration
- Food and Beverage
- Industry Water, Plating Solution
- Chemical, Organic Solvent Filtration
- Microelectronics
- Pharmaceutics
Construction Materials
- Media PP
- End Cap PP
- Sealing Silicone, EPDM, NBR, FKM
- Core PP
Dimension
- Outer Diameter 63 mm, 115 mm
- Inner Diameter 28 mm
- Length 9.75", 9.87", 10", 20", 30", 40"

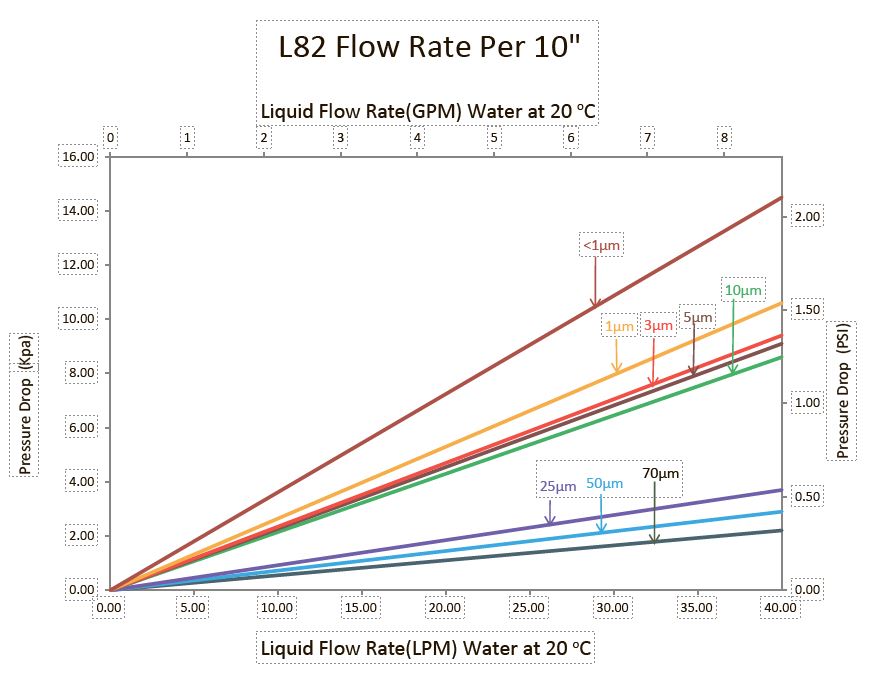

Performance
- Max. operating temperature 65 °C
- Max. operating DP 2.0Bar @ 20℃
Particle Removal Ratings (μm)
| Cartridge Designation | 85 % Efficiency | 90 % Efficiency |
| L820010 | 1 | — |
| L820030 | 3 | — |
| L820050 | 5 | — |
| L821000 | — | 10 |
| L822500 | — | 25 |
| L825000 | — | 50 |
| L827500 | — | 75 |
| L8210000 | — | 100 |

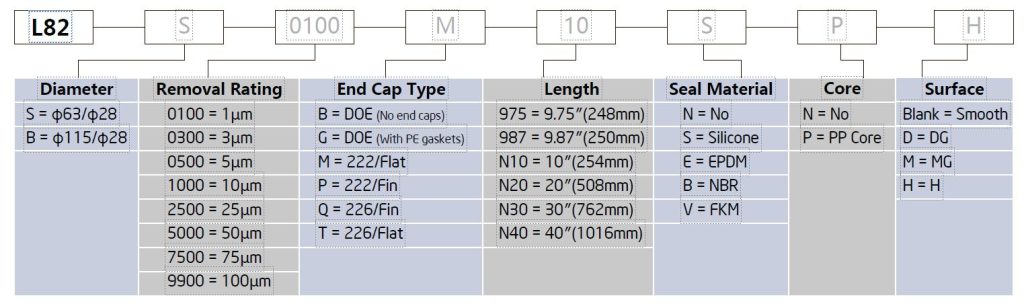

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
