L83 Series String Wound Filter Cartridges are manufactured of structured loose outer layers and tight inner layers, offering true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength. Therefore, they can withstand higher PSID and severe operating conditions.
Products
L83 Series- String Wound Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Broad chemical compatibility
- Many different combinations of filter materials and pore sizes
- Graded pore structure of efficient removal of a wide range of particle sizes
- High dirt holding capacity
- Cost savings from long service life
Applications
- Consumer Products
- Food and Beverage
- Drinking Water
- Pharmaceutical
- Edible Oil
- Inks & Paints
- Photographic
- Plating Solutions
- Petrochemicals
- Waste Water
- Chemicals
- Oil
Construction Materials
- Media PP, Cotton, Glass Fiber
- Inner Core PP, Stainless steel
Dimension
- Outer Diameter 63 mm, 115 mm
- Inner Diameter 28 mm
- Length 9.87”, 10”, 20”, 30”, 40”
Performance
| Max. Operating Temperatures | PP：80 °C |
| Cotton：120℃ | |
| Glass Fiber：200℃ | |
| Max. Pressure Drop | 2.0 Bar @ 25℃ |
Ordering information

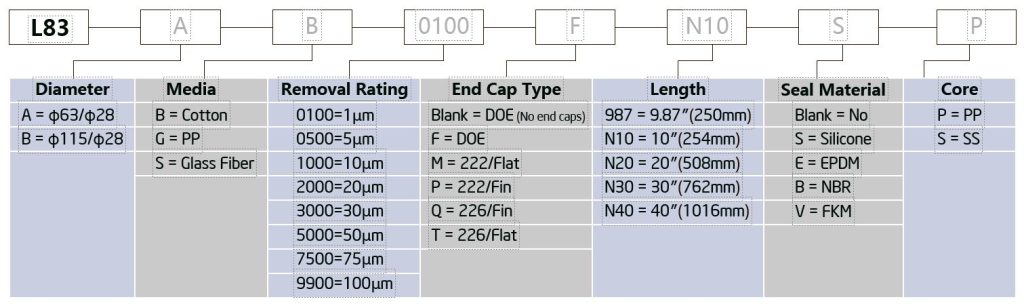

To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
L83 Series String Wound Filter Cartridges are manufactured of structured loose outer layers and tight inner layers, offering true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength. Therefore, they can withstand higher PSID and severe operating conditions.
