L84 Series filter cartridges are composed of pleated woven stainless steel meshes. They are characterized by large effective filtration area, high dirt holding capacity, and high flow rates. Its uniform pore size and sintered joint provide an excellent temperature and pressure resistance. The filter cartridge is washable and reusable.
Products
L84 Series – Stainless Steel Pleated Filter Cartridges
No.
Depends on configuration
Add to order
Features
- All stainless steel construction
- Pleated wire cloth
- Outside protection net available
- Homogenous pore sizes
- High temperature, corrosive and oxidation resistant
- High pressure back-flushing allowed
Applications
- Steam Filtration
- Oxidizing Liquids
- Corrosive Liquids
- Liquid/gas filtration at high temperature and pressure
- Viscous
- Liquids Strong-polar
- Liquids Liquid Filtration for Decarburization
Construction Materials
- Media 304/316L
- Support 304/316L
- End Caps 304/316L
- Outer Protection Net(Optional) 304/316L (Recommended when the operating pressure is up to 0.2 MPa)
- Sealing Silicone, EPDM, NBR, E-FKM
Dimension
- Outer Diameter 60mm, 65mm, 68mm
- Length 5", 10", 20", 30", 40"
Performance
- Max. Operating Temperature 300 °C
- Max. Operating DP 5,0 bar
Quality
- Manufactured according to ISO9001:2015 certified Quality Management System
Ordering information

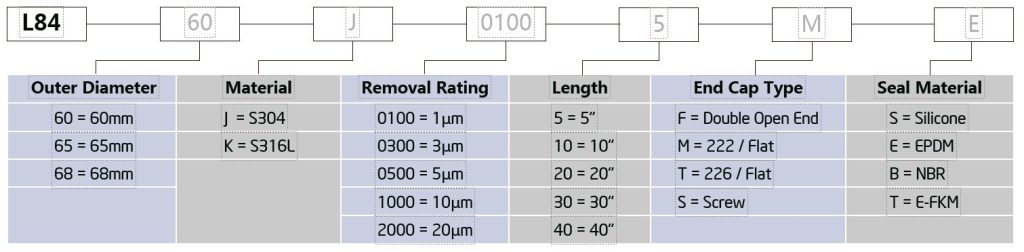

To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
