L86 Depth-Stack series is an ideal type of filter cartridge using depth filter sheets. It is designed to provide optimal clarification by using a double separator construction. The separator design increases the total stability of the filter cartridges as the separators fully support the sheet materials. This design also prevents filter sheet deformities after heat treatments and adverse effects of hot sanitation. It is manufactured with rigid external clips to prevent damage during module loading and unloading and offer easy and reliable handling.
Products
L86 Series Depth-Stack Filter Cartridges
No.
Depends on configuration
Add to order
Features
- Washable under certain conditions, resulting in longer service life
- Easy and reliable handling rigid external clips protect filer sheet during module loading and unloading
- No adverse effects to filter sheets during hot sanitization or process filtration
Applications
| Bio-Pharmaceuticals | lood Products, Vaccine, Antibiotics, Growth Media, Buffer |
| Food Products | Syrups, Vinegar, Edible Oils, Sugars |
| Beverages | Wine, Beer, Juices, Soft Drinks, Cider, Liquor, Milk and dairy products |
| Cosmetics | Perfumes, Lotions, Shampoos, Deodorants, Colognes |
Construction Materials
| Depth Filter Sheet | Cellulose fibers, Resins, Perlite, Diatomaceous earths, etc. |
| Core/ Support Separator | PP |
| Sealing | Silicone, EPDM, NBR, FKM, E-FKM |
Quality
- Manufactured in a clean room environment
- Manufactured according to ISO9001:2015 certified Quality Managemet System
- Material of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21 CFR
- Passed European Commission Directives (EU10/2011)

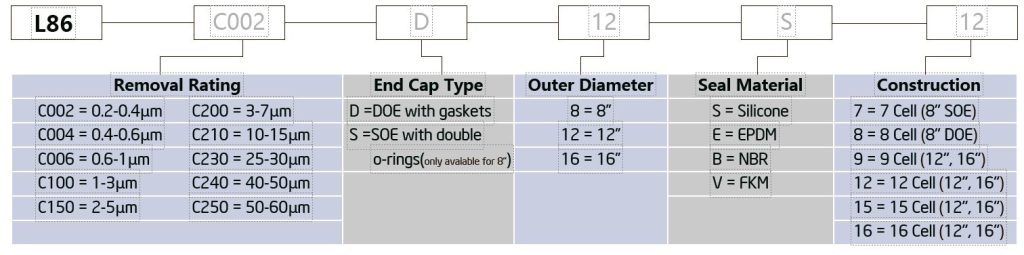

Ordering information
To place an order, please make up the product code of the configuration you need, guided by the tabular data and observing the order of the values in the code according to the picture. After that, click the Order button and enter the received code in the Product field. Fill in the remaining fields of the Order form and click Submit. Our managers will contact you soon.
